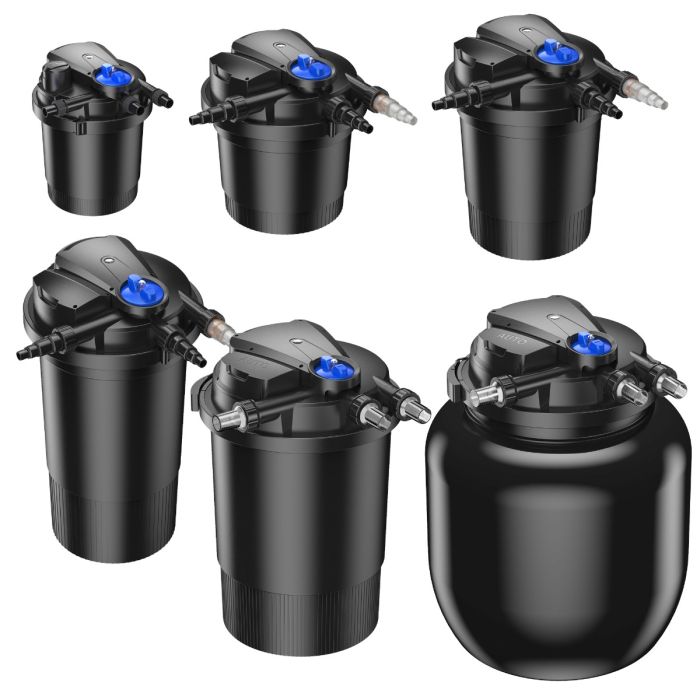

Pressurised Auto Cleaning Pond Filter with UV Steriliser Clarifier - 8 Sizes

High quality automatic cleaning pressurised pond filters with UV sterilisers suitable for ponds up to 80,000 litres.

These filters are available in a choice of 8 sizes to suit all sizes of ponds. Please see details below for detailed specifications for each model.

In stock
SKU
9504
£179.99

In stock in our UK based warehouse for same day dispatch when ordered before 4pm. Read more...

Free UK delivery on all orders. No minimum spend. Next day delivery available - this option can be selected at the checkout if required. International shipping calculated at checkout if required.

Call us now with any questions or to order this item by telephone. Call: 0151 261 9207 Mon-Fri 9am-5pm.

60 day return policy to return this item if you are not satisfied. Read more...

High quality automatic cleaning pressurised pond filters with UV sterilisers suitable for ponds up to 80,000 litres. PLEASE NOTE: These filters are provided WITHOUT pump, so a suitable pump must be used to pump water into the filter via a hose. We sell suitable pumps separately if required.

These are one of the most advanced pond filters on the market today. They are auto cleaning, so full strip down cleaning of the pond filter is not required as often.

These filters are available in a choice of 8 sizes to suit all sizes of ponds. Please see details below for detailed specifications for each model.

Filter Features:

New pond filter generation:

Indicator for pollution

High flow rate

Optimum development of biological pond filter

Easy and uncomplicated bio-pressure pond filter-system

This system provides fast and reliably clear water

Easy backwashing (by flipping a switch)

Different filter materials (special filter foams)

Advantages:

Mechanical and biological pressure filter with integrated UVC-clarifier. All connections and technology are in the lid/cover, the filter can be buried to lid for concealment without difficulty. Flush back function with maintenance indicator.

Cleaning and maintenance:

The water can be pumped to a higher lying waterfall and then led back into the pond. The annual maintenance is limited to checking the filter media and the UV-lamp. The filter has a modern flush back function that can be adjusted by means of a switch with two functions. With the switch you have the following possibilities for setting:

The EasyClean flush back function:

• Switch position "Filter"

Normal operation - the water passes through the pressure pond filter with the help of a pond pump and returns cleanly into the pond.

• Switch position "Clean"

Cleaning mode - By turning the switch the motor that is integrated in the top of the filter is switched on and makes the filter sponges rotate in the inner of the pond filter and cleans them from the coarse dirt without opening the pond filter. During the cleaning operation the dirty water is drained by an additional connection and can be used for example for garden irrigation.

Filter Placement:

The filter is placed at the pond side and by means of a a suitable pump (not included in delivery) connected with the water. The water circulates through the filter and the UV-device and after being cleaned is led again into the pond.

Fundamental Functionality:

Pond filter combine the mechanical and biological cleaning. Microorganisms settle on the filter material and remove germs and bacteria from the water. By mechanical filtering, suspended particles and dirt remain in the pond filter and by this means no longer return to the pond water.

It takes about 4-6 weeks, until Filter Bacteria have sufficiently colonized the bio pond filter. Only thereafter it is advisable to switch on a UVC Pond Clarifier. Starter bacteria help to shorten the start-up phase of a new filter. Starter bacteria refer to microorganisms especially grown in a laboratory. By adding them, you can shorten the start-up phase considerably. Bacteria are active above a temperature of approximately 10°-12°C, the pond filter´s temperature should exceed 40°C. So, the pond filter should be placed in the shadow and not be exposed to direct sunlight.

UVC-pond clarifiers irradiate the water in a flow-through reactor with UV rays. The UV-C radiation destroys the swimming algae. The algae agglutinate to large particles and ca be easily removed by means of mechanical filtering. Our UVC clarifiers modify the tertiary and the quaternary structure of the algae proteins by means of UV-radiation. This means the destructions of the algae which can be removed from the water by pond filters.

Although the photographs show EU plugs, these filters are full UK models and are supplied with 3 pin UK plugs.

Model Specifications:

Model: CPA-2500

Max Flow Rate: 6000l/h

Hose Adapter Size: ¾” to 1 ¼”

Suitable pond volume for ponds with fish: 3000 Litres

Suitable for decorative ponds 6000 Litres

UV Clarifier Power: 11w

Actual filter volume in litres: 16 Litres

Dimensions: 310 x 310 x 405mm



Model: CPA-5000

Max Flow Rate: 7000l/h

Hose Adapter Size: ¾” to 1 ¼”

Suitable pond volume for ponds with fish: 4000 Litres

Suitable for decorative ponds 8000 Litres

UV Clarifier Power: 11w

Actual filter volume in litres: 20 Litres

Dimensions: 310 x 310 x 495mm



Model: CPA-5000

Max Flow Rate: 9000l/h

Hose Adapter Size: ¾” to 1 ½”

Suitable pond volume for ponds with fish: 4000 Litres

Suitable for decorative ponds 8000 Litres

UV Clarifier Power: 11w

Actual filter volume in litres: 20 Litres

Dimensions: 380 x 380 x 410mm

Model: CPA-10000

Max Flow Rate: 10000l/h

Hose Adapter Size: ¾” to 1 ½”

Suitable pond volume for ponds with fish: 6000 Litres

Suitable for decorative ponds 12000 Litres

UV Clarifier Power: 11w

Actual filter volume in litres: 25 Litres

Dimensions: 380 x 380 x 520mm



Model: CPA-15000

Max Flow Rate: 10000l/h

Hose Adapter Size: ¾” to 1 ½”

Suitable pond volume for ponds with fish: 15000 Litres

Suitable for decorative ponds 20000 Litres

UV Clarifier Power: 18w

Actual filter volume in litres: 38 Litres

Dimensions: 380 x 380 x 730mm



Model: CPA-20000

Max Flow Rate: 12000l/h

Hose Adapter Size: ¾” to 2”

Suitable pond volume for ponds with fish: 20000 Litres

Suitable for decorative ponds 40000 Litres

UV Clarifier Power: 36w

Actual filter volume in litres: 50 Litres

Dimensions: 450 x 450 x 550mm



Model: CPA-30000

Max Flow Rate: 12000l/h

Hose Adapter Size: ¾” to 2”

Suitable pond volume for ponds with fish: 30000 Litres

Suitable for decorative ponds 60000 Litres

UV Clarifier Power: 55w

Actual filter volume in litres: 75 Litres

Dimensions: 450 x 450 x 715mm



Model: CPA-50000

Max Flow Rate: 13000l/h

Hose Adapter Size: ¾” to 2”

Suitable pond volume for ponds with fish: 40000 Litres

Suitable for decorative ponds 80000 Litres

UV Clarifier Power: 55w

Actual filter volume in litres: 170 Litres

Dimensions: 600 x 600 x 815mm
